Material, Surface Treatment and Other Information
Other
F - Fine Thread
L - Left-Handed Thread
Surface Treatment Options
A - White Zinc Plated (Zn/White)
Material Options
A - Free Cutting Steel DIN 1.0718 (11SMnPb30+C)/CK 67 (Clips)

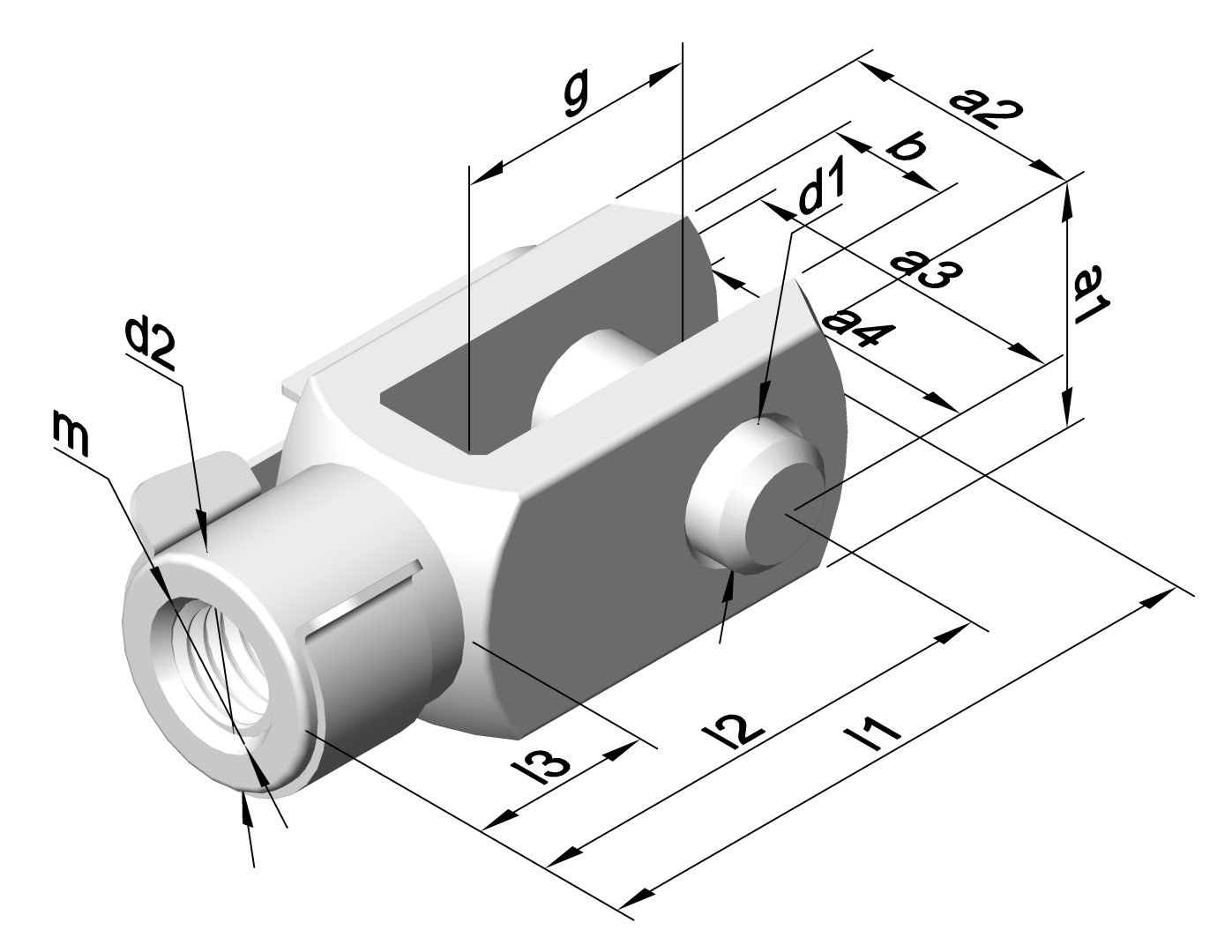

Clevis DIN 71752 with Folding Spring Bolt
| Code |
|
d1 |
g |
a4 |
a1 |
a2 |
a3 |
b |
m |
d2 |
l1 |
l2 |
l3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CC101 |
|
4 |
8 |
9,5 |
8 |
11,25 |
4 |
M4x0,7 |
8 |
21 |
16 |
6 |
|
| CC1011 |
|
4 |
8 |
9,5 |
8 |
11,25 |
4 |
M5x0,8 |
8 |
21 |
16 |
6 |
|
| CC103 |
|
5 |
10 |
12 |
10 |
14,5 |
5 |
M5x0,8 |
9 |
26 |
20 |
7,5 |
|
| CC1031 |
|
5 |
10 |
12 |
10 |
14,5 |
5 |
M6x1 |
9 |
26 |
20 |
7,5 |
|
| CC105 |
|
6 |
12 |
14 |
12 |
16,5 |
6 |
M6x1 |
10 |
31 |
24 |
9 |
|
| CC1054 |
|
6 |
12 |
14 |
12 |
16,5 |
6 |
3,2 |
10 |
31 |
24 |
9 |
|
| CC1056 |
|
6 |
12 |
14 |
12 |
16,5 |
6,5 |
M6x1 |
10 |
31 |
24 |
9 |
|
| CC1057 |
|
6 |
12 |
14 |
12 |
16,5 |
6 |
M8x1,25 |
10 |
31 |
24 |
9 |
|
| CC106 |
|
6 |
24 |
14 |
12 |
16,5 |
6 |
M6x1 |
10 |
43 |
36 |
9 |
|
| CC1061 |
|
6 |
24 |
12 |
12 |
16,5 |
6 |
3,5 |
10 |
45 |
38 |
11 |
|
| CC1068 |
|
6 |
24 |
12 |
12 |
16,5 |
6 |
M5x0,8 |
10 |
43 |
36 |
9 |
|
| CC107 |
|
8 |
16 |
19 |
16 |
21,5 |
8 |
M8x1,25 |
14 |
42 |
32 |
12 |
|
| CC1071 |
|
8 |
16 |
19 |
16 |
21,5 |
8 |
M10x1,5 |
14 |
42 |
32 |
12 |
|
| CC1072 |
|
8 |
16 |
19 |
16 |
21,5 |
8 |
M6x1 |
14 |
42 |
32 |
12 |
|
| CC1073 |
|
8 |
16 |
19 |
16 |
21,5 |
9 |
M8x1,25 |
14 |
42 |
32 |
12 |
|
| CC1074 |
|
8 |
16 |
19 |
16 |
21,5 |
9 |
M6x1 |
14 |
42 |
32 |
12 |
|
| CC108 |
|
8 |
32 |
19 |
16 |
21,5 |
8 |
M8x1,25 |
14 |
58 |
48 |
12 |
|
| CC1082 |
|
8 |
32 |
19 |
16 |
21,5 |
9 |
M8x1,25 |
14 |
58 |
48 |
12 |
|
| CC1083 |
|
8 |
32 |
19 |
16 |
21,5 |
9 |
M6x1 |
14 |
58 |
48 |
12 |
|
| CC109 |
|
10 |
20 |
23 |
20 |
26 |
10 |
M10x1,5 |
18 |
52 |
40 |
15 |
|
| CC1091 |
|
10 |
20 |
23 |
20 |
26 |
10 |
M8x1,25 |
18 |
52 |
40 |
15 |
|
| CC110 |
|
10 |
40 |
23 |
20 |
26 |
10 |
M10x1,5 |
18 |
72 |
60 |
15 |
|
| CC1101 |
|
10 |
40 |
23 |
20 |
26 |
10 |
M6x1 |
18 |
72 |
60 |
15 |
|
| CC1102 |
|
6 |
40 |
23 |
18 |
26 |
8 |
M6x1 |
18 |
72 |
60 |
15 |
|
